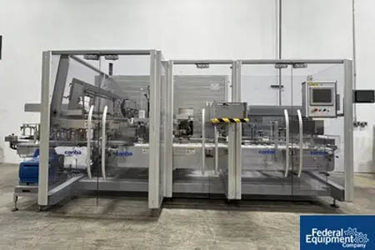

Cariba Vial Cartoner, Model C442

Vial Cartoner:

• Manufacturer: Cariba, SRL (Bologna, Italy)
• Model C442
• Year of construction: 2022
• Rated for up to 500 vials/minute at cartoner in-feed
• Format parts included for:
• 2x5 (2ml) vials per carton
• 5x5 (2ml) vials per carton
• Left-to-right machine flow
• In-feed tray on rotary table
• Multi-lane vial in-feed unit
• Servo-driven, automatic feeding system for multipack vials in-line with upstream equipment
• CFR 21, part 11 compliance
• Booklet leaflet feeding unit
• Cognex Bar Code Reader for booklet
• Siemens PLC HMI with Open Source Code
• Reject device with verification
• Large capacity flat blanks magazine for extremely long run time without operator refill
• Flat blanks magazine assembled in and inclined position at ergonomic height to allow easy reloading and size adjustment
• The magazine includes minimum load sensor digital indicator for quick size change over and a reduction of change parts
• Pick & Place system positively pulls flat blanks and transports them to forming area
• Vacuum by “venturi system”
• NORDSON ProBlue 4 hot melt glue unit equipped with two hoses, guns, nozzles, and timer for programmed switch
• Set of spare parts included
• Electrical: 480V/3Ph/60Hz
• Electrical consumption: 10KW/H

Specifications

• Drawings: Yes
• Model: C442
• Year of Construction: 2022
